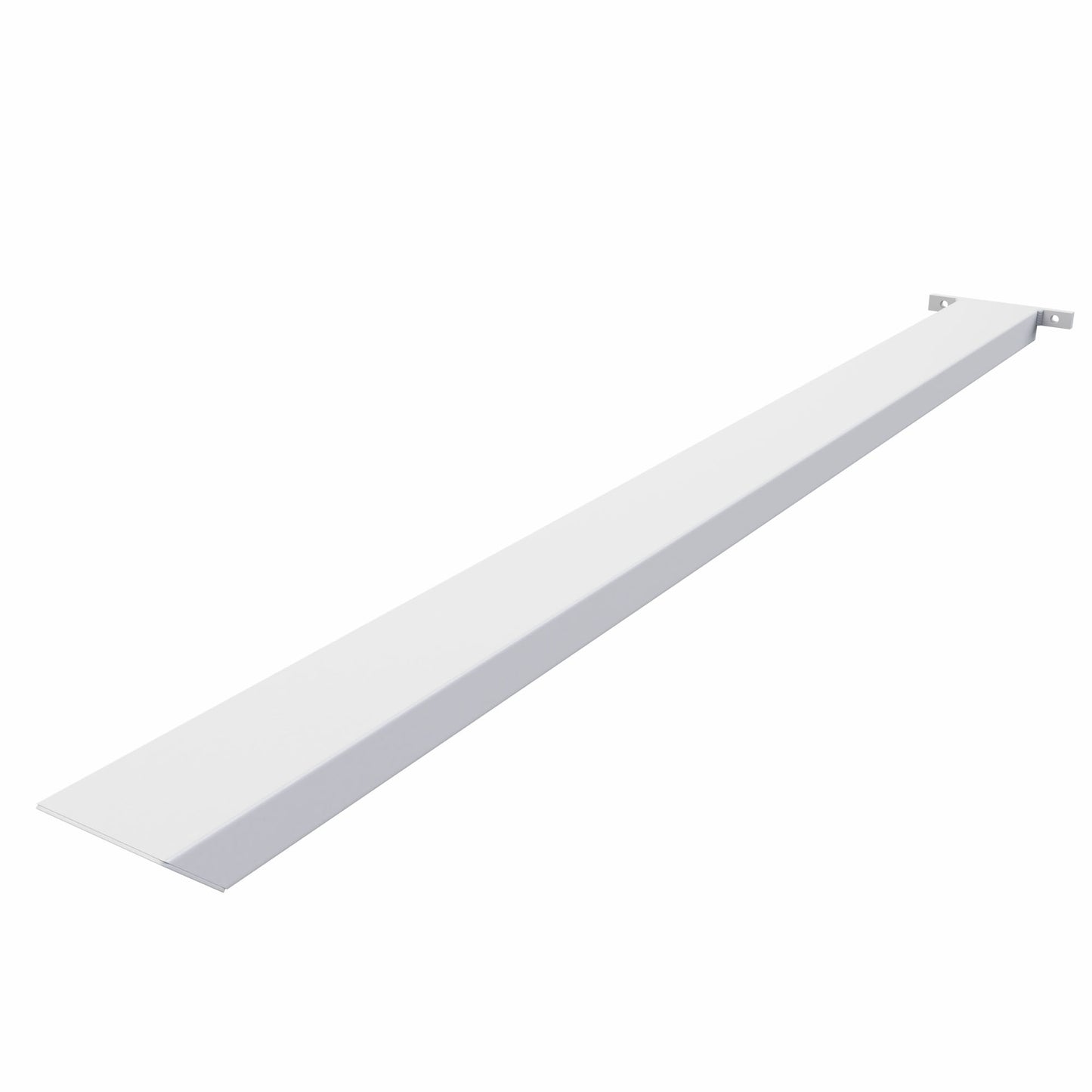

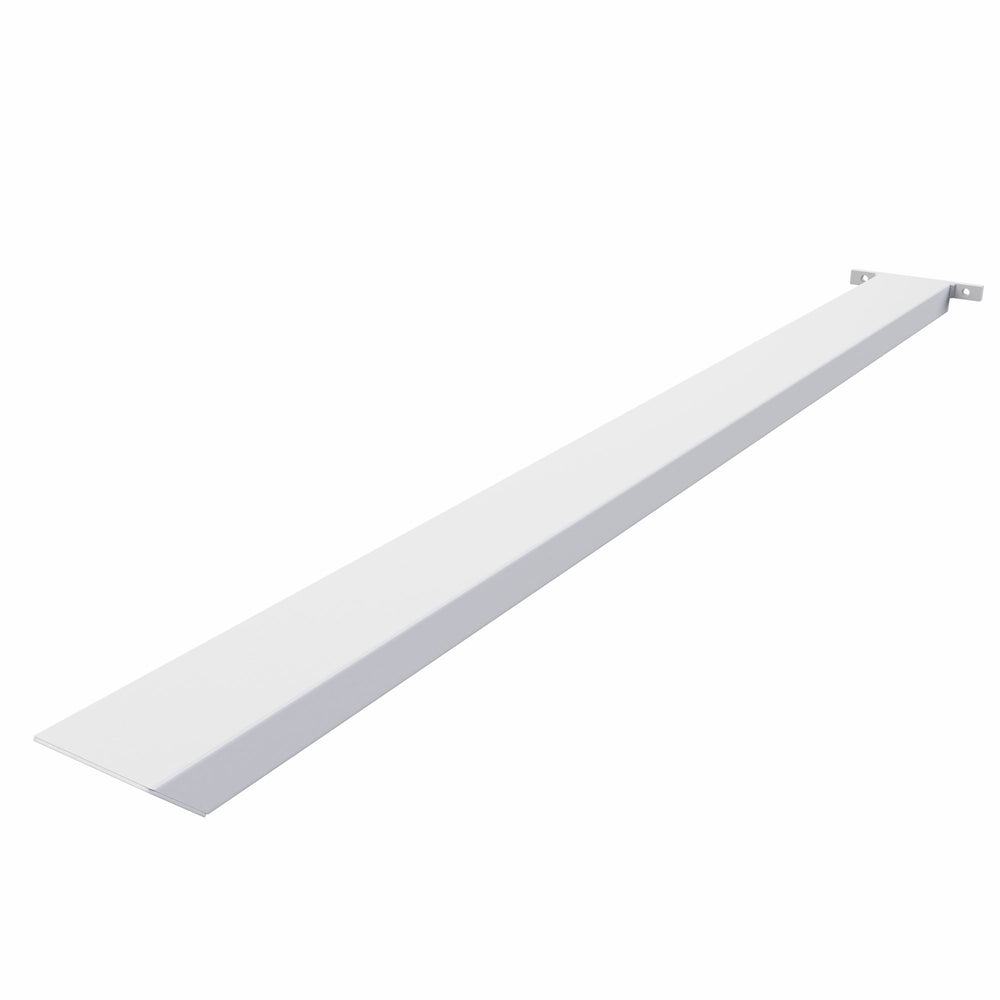

*NEW* Hidden Island Industrial Support Bracket®
Large overhang countertop supports for all stone types including Granite, Quartz, Marble, and Concrete. Heavy countertop overhangs are the Hidden Island Industrial Support Bracket’s® specialty.
This Hidden Island Industrial Support Bracket® is used when there is no knee wall or when you have an oversized overhang requiring the best on the market. This is THE perfect concealed support for countertop overhangs on a kitchen island or breakfast bar. Give yourself or your customer the peace of mind they deserve by having the strongest kitchen island support bracket on the market The Hidden Island Industrial Support Bracket®.
This bracket is designed to attach to the inside of the front wall of the cabinet and will extend through the cabinet.
Dimensions of the Hidden Island Support Bracket:
Length... [you choose]
Width.... 2-1/2 inches
Thickness.... 1 inch
How to Determine What Size Bracket?
The bracket will be mounted to the inside of the cabinet. Start by measuring your cabinet from the inside front wall (where the doors are) to the opposite side of the cabinet (for our example we are saying this measurement is 22 inches). Next, take your measurement you just did (22 inches) and add the inches of the overhang of the countertop (for example 15 inches), then minus 3 inches (to stay away from the outer edge of the countertop). This example would give you a total of 34 inches (22 +15 - 3= 34) - you would then need to order a 34 inch Hidden Island Support Bracket
Hidden Island Industrial Support Bracket® Features:
- Hardware Included
- Virtually invisible giving your island the appearance of floating.
- Non-intrusive. No corbels needed. No knee-knocking.
- The flange is welded onto the support bracket.
- An economical way to protect your countertop investment.
- Instills confidence that your countertop is supported effectively.
- Completely open space allowing room for chairs and legs.
- Easy to install.
- Made of 1 inch thick by 2 ½ inches wide proprietary ribbed aluminum made here in the USA.
- Bracket end has a beveled edge for safety.
- Screw hole on each side of the flange.
- Free Ground Shipping*
- Made in the USA.
- The package is (1) bracket.
- Limited Lifetime Warranty**
- All of our Aluminum brackets are painted with a double coat of rust inhibitor black paint.
Helpful Information and Downloads:
Download our Spec/Cut Sheet
When will my order ship once the order is placed? [Information can be found here on when your order will ship.]
How many brackets do I need? [We recommend spacing your brackets 16-20 inches apart.] The Installation Guide can be further help.
Most common FAQ
Although we have standard sizes, we can manufacture special order brackets with specifications to your request.
Have questions? Give us a call 888-584-1112
Orders with brackets totaling over 20 brackets please read shipping info for lead time.
*See Full Shipping Info
**See Terms and Conditions
