T Brace Countertop Support Bracket

For countertop support, the T-Bracket Hidden Granite Bracket is the bracket support which will use the weight of the granite, to support your big granite countertop overhang on an island. The perfect concealed countertop overhang bracket.

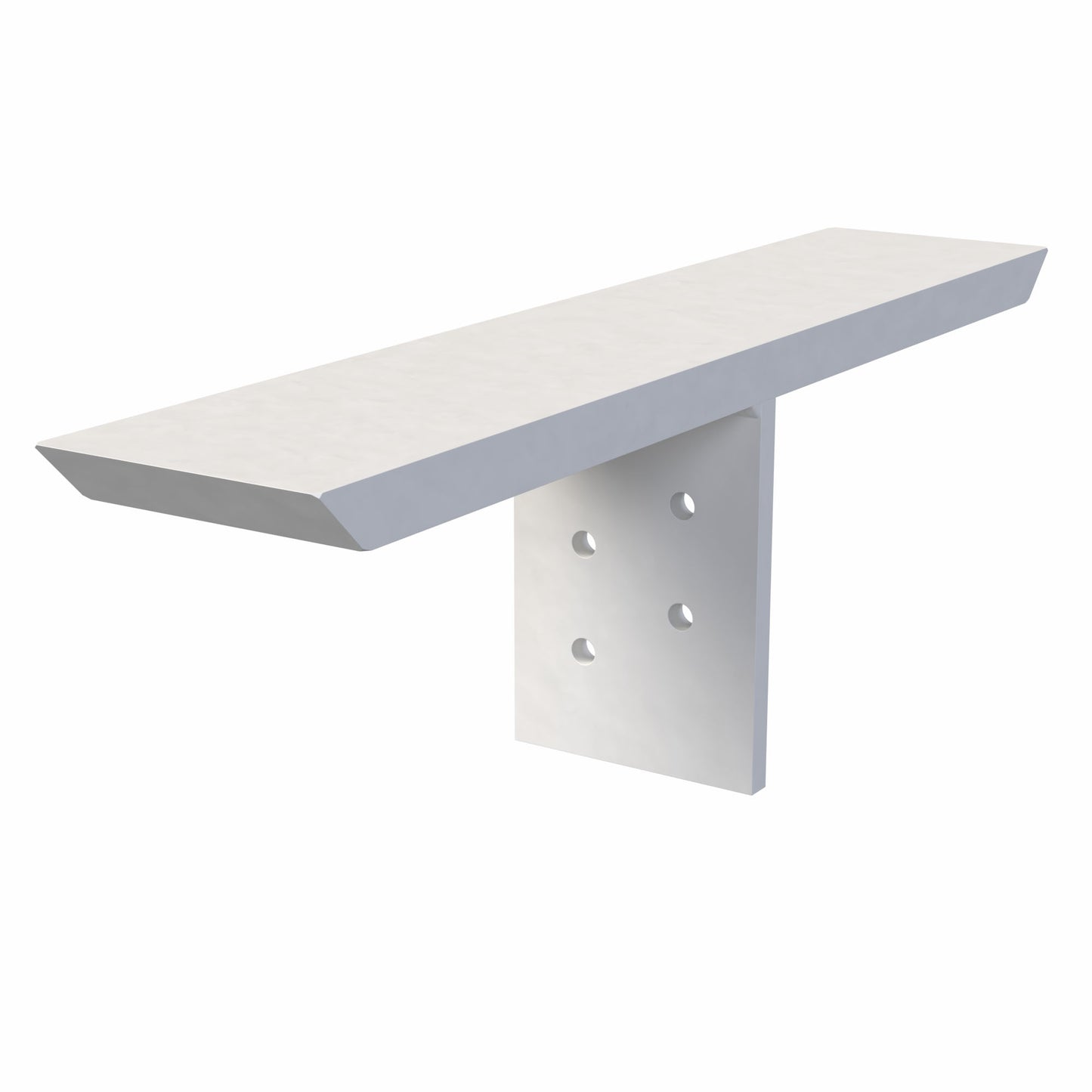

This Bracket lies across the top of the cabinet, half of the bracket will be inside of the cabinet and the other half will be exposed under the overhang. The vertical angle drops down on the inside back of the cabinets and is used to hold the T- Bracket in place until the granite is put in place. This will give your granite the appearance of floating once installed.

Countertop Support bracket makes countertop float with the T Bracket from The Original Granite Bracket

 PLEASE NOTE: The vertical piece [tang] is welded in the center of the horizontal piece. Therefore, if you have a 10 inch bracket the vertical piece [tang] is directly in the center of the bracket, giving you approximately 5 inches on each side of the T-Bracket. Meaning there will be approximately 5 inches inside the cabinet and 5 inches on your overhang. {See above video for ordering tips}

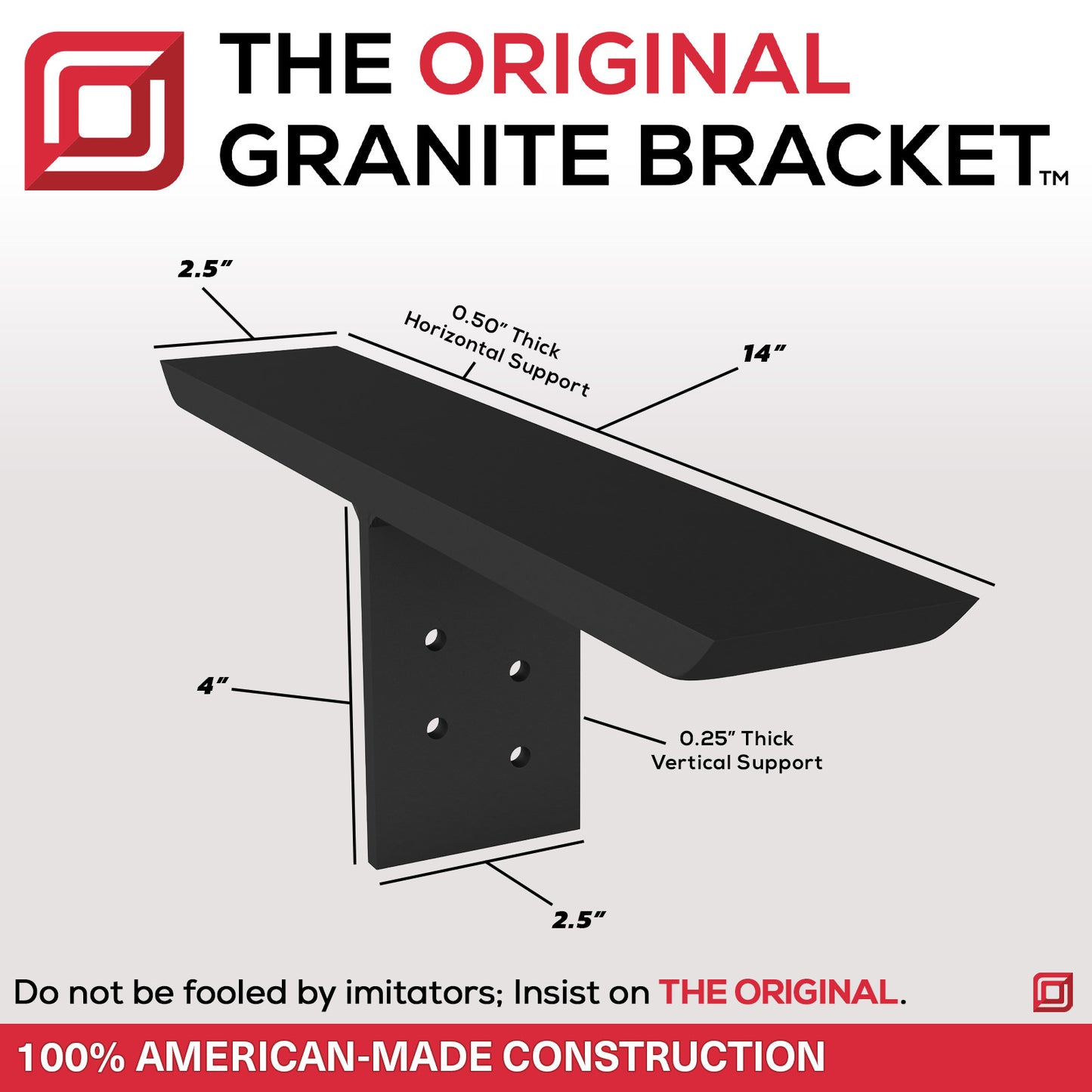

Dimensions:

Length ……..…. [you choose]

Width …………. 2 ½ inches

Thickness …..…. ½ inch

Hole Diameter… 1/4 inch



Bracket Features:

  • Virtually invisible, gives your granite countertop the appearance of floating
  • Non-intrusive. No corbels needed. No knee knocking
  • Completely open space allowing room for chairs and legs
  • Economical way to protect your countertop investment
  • Easy to install
  • Made of ½ inch thick by 2 ½ inch wide Solid American Metal welded for strength
  • Bracket end has beveled edge for safety
  • Screw holes are staggered on the vertical piece
  • Black
  • Brackets are paintable with any anti-rust paint
  • Free Ground Shipping*
  • Made in the USA
  • Package is (1) bracket
  • Limited Lifetime Warranty**



Helpful Information and Downloads:

  • Download Spec/Cut Sheet
  • When will my order ship once the order is placed? [Information can be found here on when your order will ship.]
  • How many brackets do I need? [We recommend spacing your brackets 16-20 inches apart. The Installation Guide can be further help.
  • Most common FAQ



      Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

      Have questions? Give us a call 888-584-1112

      Orders with brackets totaling over 20 brackets please read shipping info for lead time.

      *See Full Shipping Info

       **See Terms and Conditions



      $44.95

      Sale price Regular price $39.95

      Customer Reviews

      4.9 Based on 76 Reviews
      5 ★
      92%
      70
      4 ★
      8%
      6
      3 ★
      0%
      0
      2 ★
      0%
      0
      1 ★
      0%
      0
      Customer Photos
      Write a Review Ask a Question
      • Reviews
      • Questions

      Thank you for submitting a review!

      Your input is very much appreciated. Share it with your friends so they can enjoy it too!

      Filter Reviews:
      • brackets
      • shipping
      • support
      • weld
      • quality
      • countertops
      • Welds
      • suggestion
      • wood
      • island
      JS
      11/05/2017
      Jennifer S.
      United States

      Great!!

      YouTube video was great and website is very helpful and easy to use! The countertop installers were going to charge over $150 for these plus installation. So glad I️ found your website!

      A
      08/16/2017
      Anonymous
      United States

      T bracket use

      Good heavy duty product. We painted half of it since it will be supporting a granite countertop overhang, and we want to make it less noticeable from underneath. Thank you for a solid product. And timely delivery.

      Anonymous verified customer review of T Brace Countertop Support BracketAnonymous verified customer review of T Brace Countertop Support BracketAnonymous verified customer review of T Brace Countertop Support Bracket
      A
      07/26/2019
      Anonymous
      United States United States

      T brace support

      I must say these are sturdy (and heavy). When the granite fabricator came to measure for countertops he looked at them and asked where I got them. He was impressed with them. The only issue I had in the installation is that I installed them going out from the side of a cabinet in an island and the T portion would hit a drawer slide inside the cabinet so I had to sandwich it between the cabinet side and a 3/4 ply outside which was planned anyway.

      Anonymous verified customer review of T Brace Countertop Support BracketAnonymous verified customer review of T Brace Countertop Support Bracket
      DC
      06/25/2019
      Dan C.
      United States United States

      T brackets

      Love these brackets…strong, hidden, and easy installation. Prompt shipping from these folks was a big help. Thanks!

      Dan C. verified customer review of T Brace Countertop Support Bracket
      A
      05/18/2019
      Anonymous
      United States

      Great product - just one suggestion

      Had several different brackets and all were top notch quality. My only suggestion would be a caution about the welds on the T brackets. You could grind out part of the cabinet side to make them fit flush to the cabinet wall but I was working with 1/2 " particle style wood and rather than notch and lose support, I added a spacer below the weld to make flush. It also gave me more thickness for the screws. Thanks
