*NEW* Industrial L Countertop Support Bracket

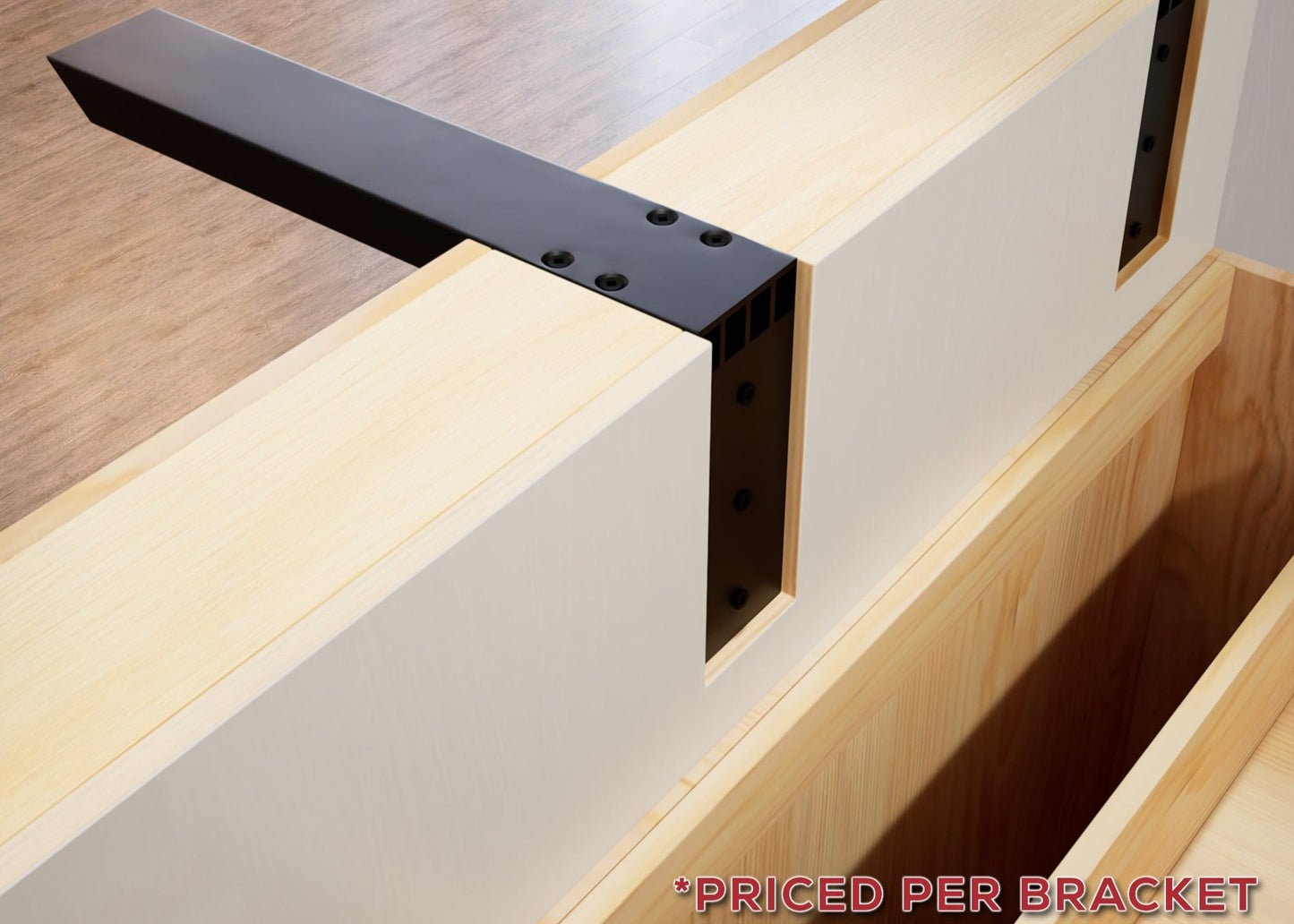

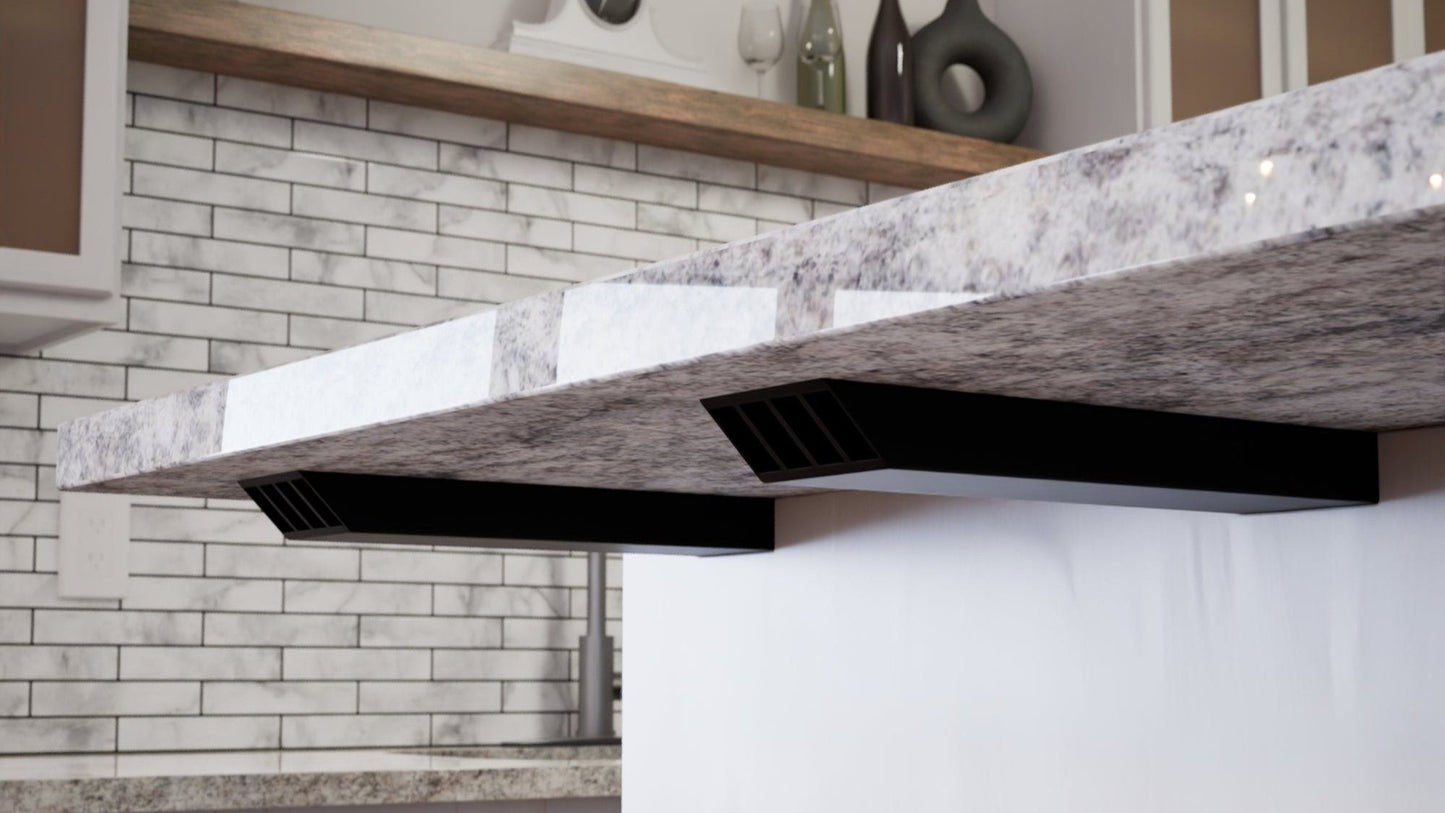

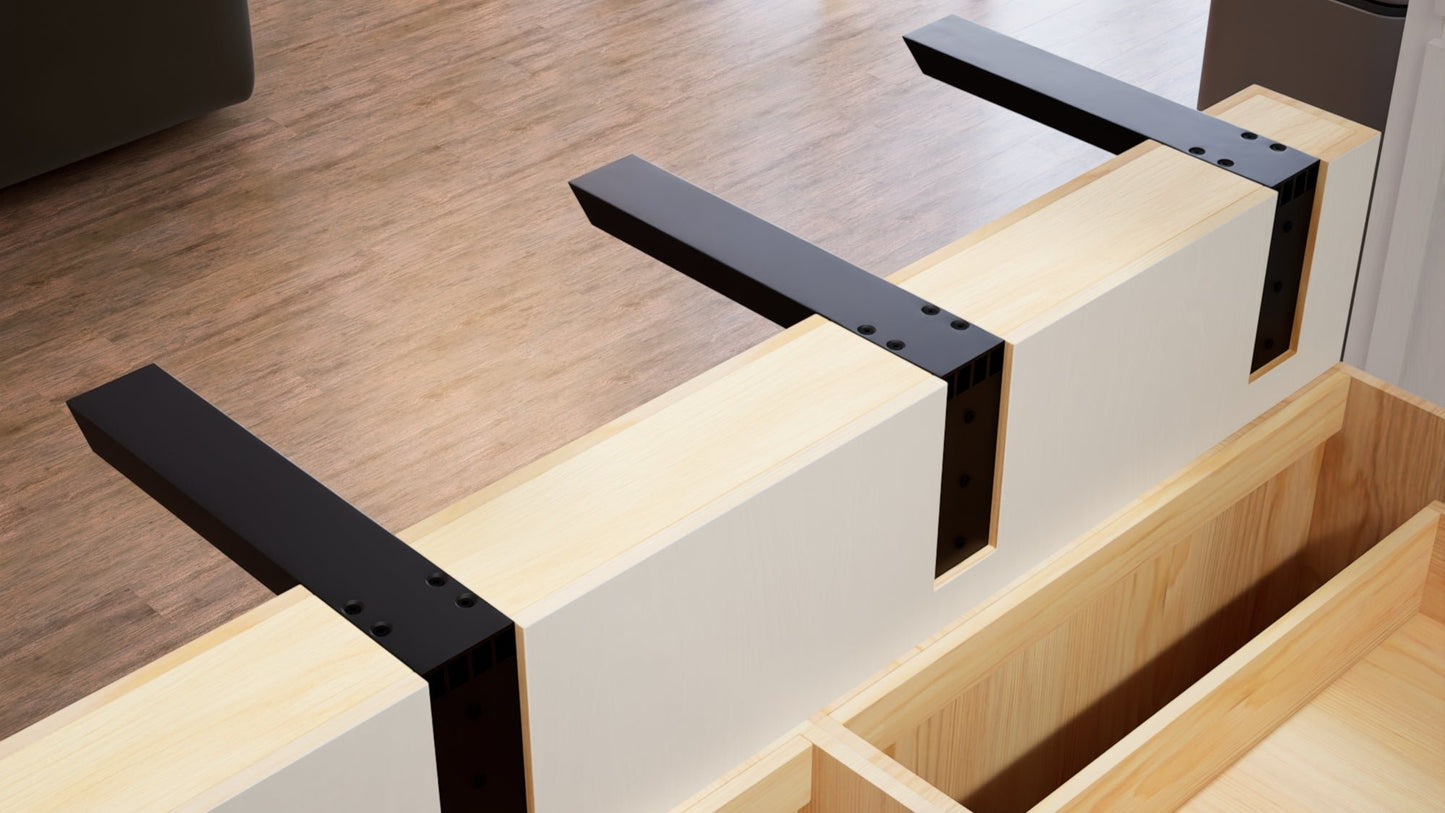

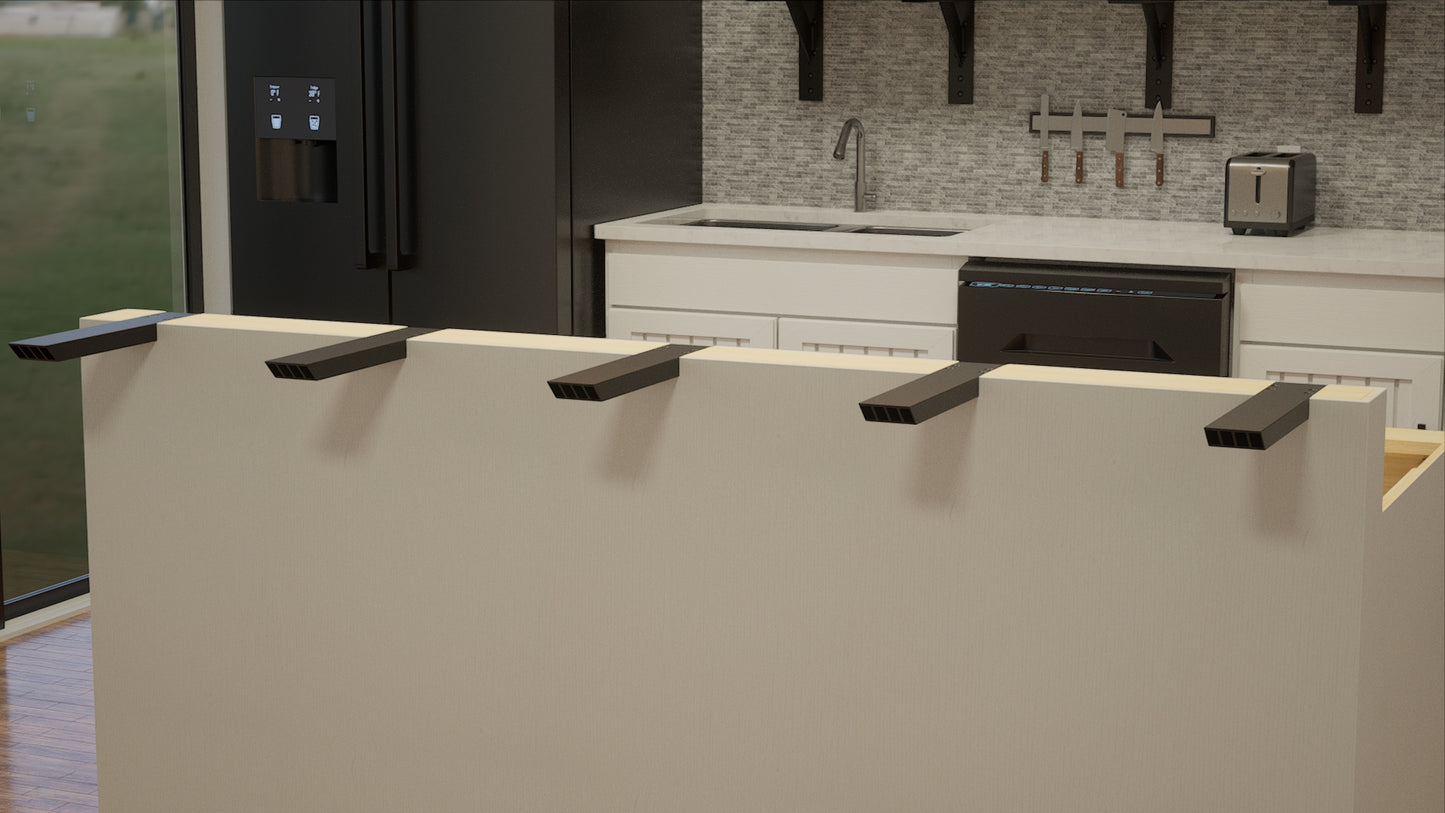

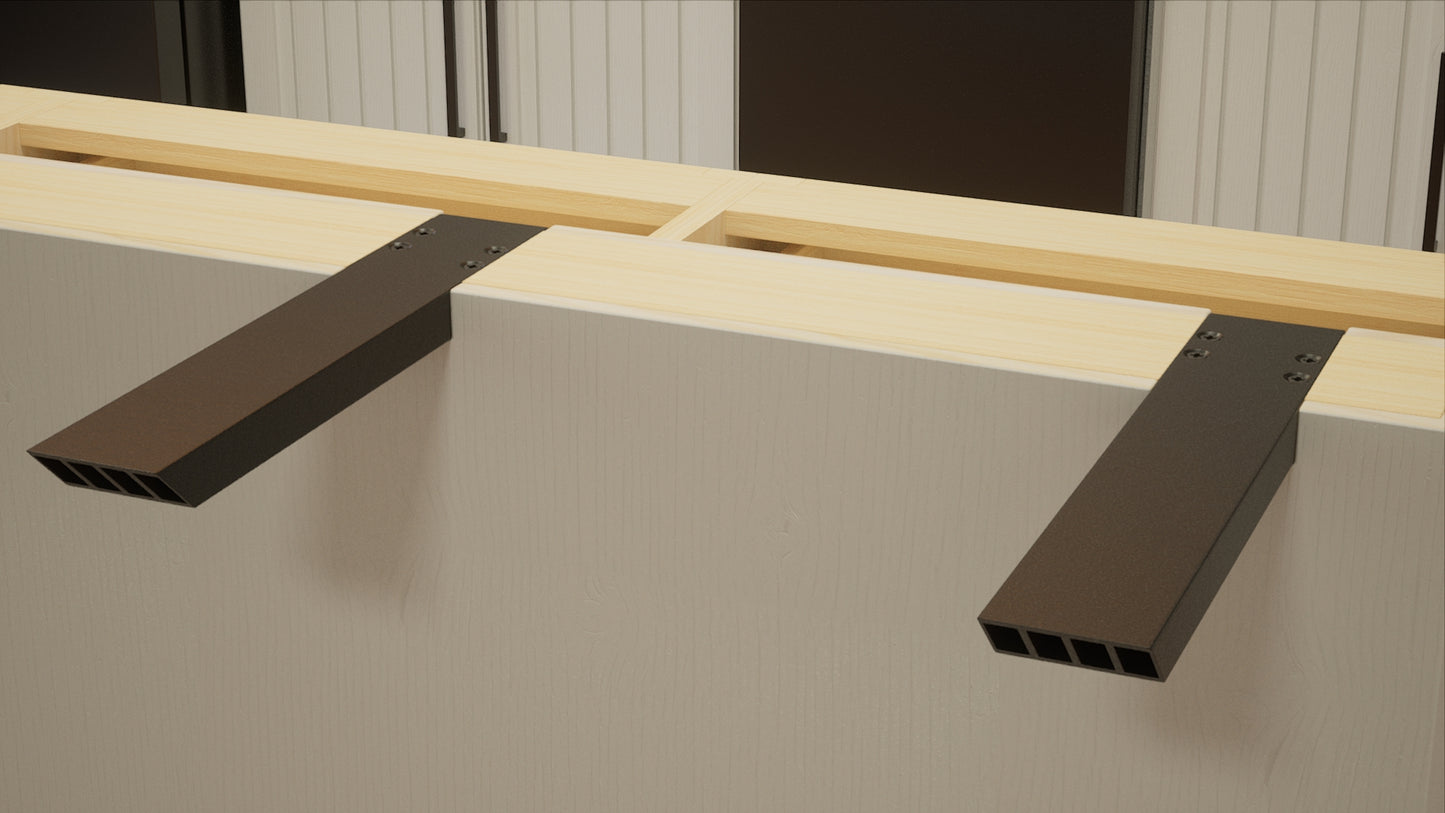

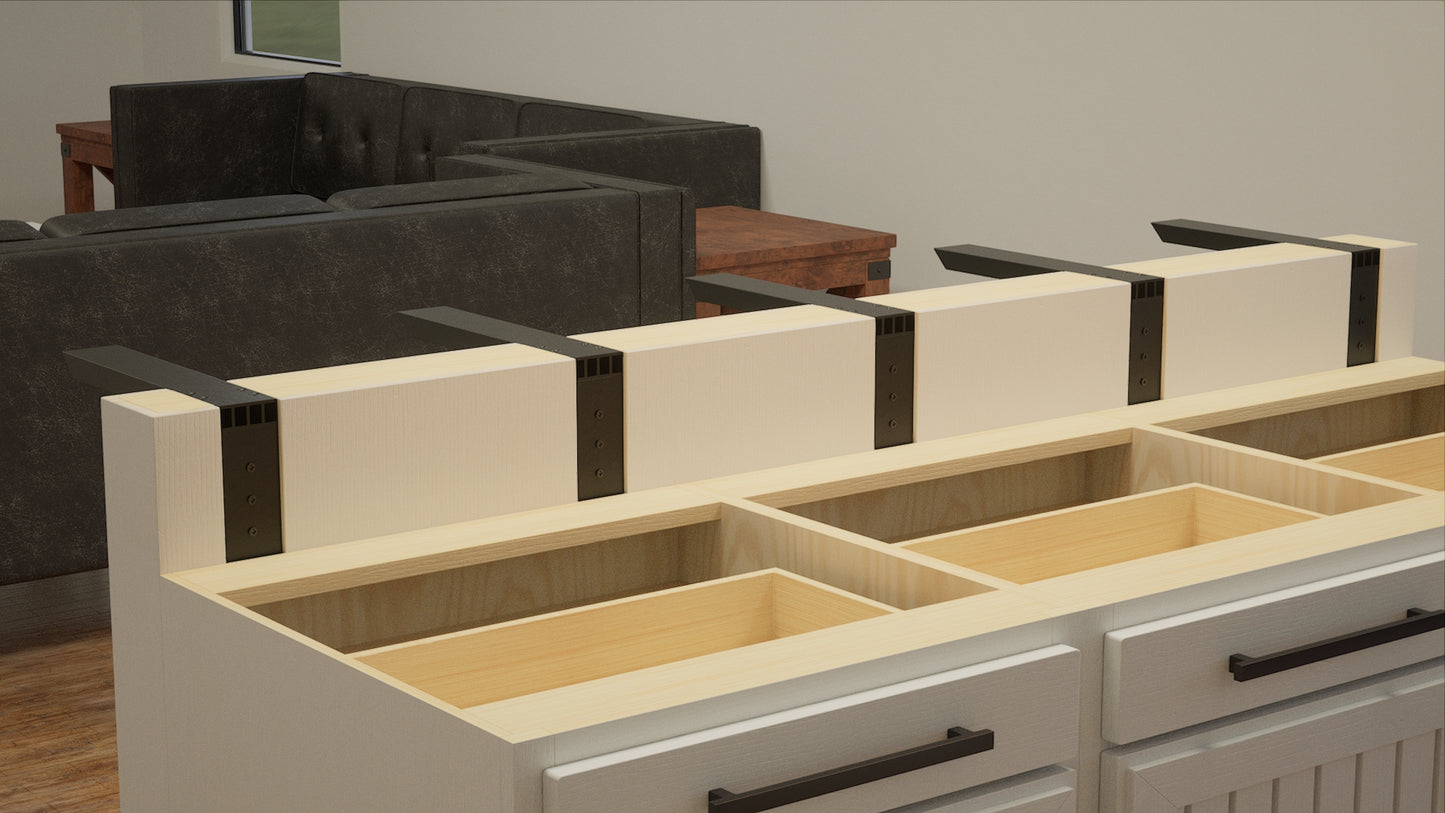

For countertop installation mounted over a knee/pony wall, then into each stud on the knee/pony wall, to secure the weight of the countertop. If no knee/pony wall, then a 2x6 must be mounted inside the cabinet and the L Bracket attached spacing every 16-20 inches.

 ** The knee/pony wall MUST be double plated to use this bracket**

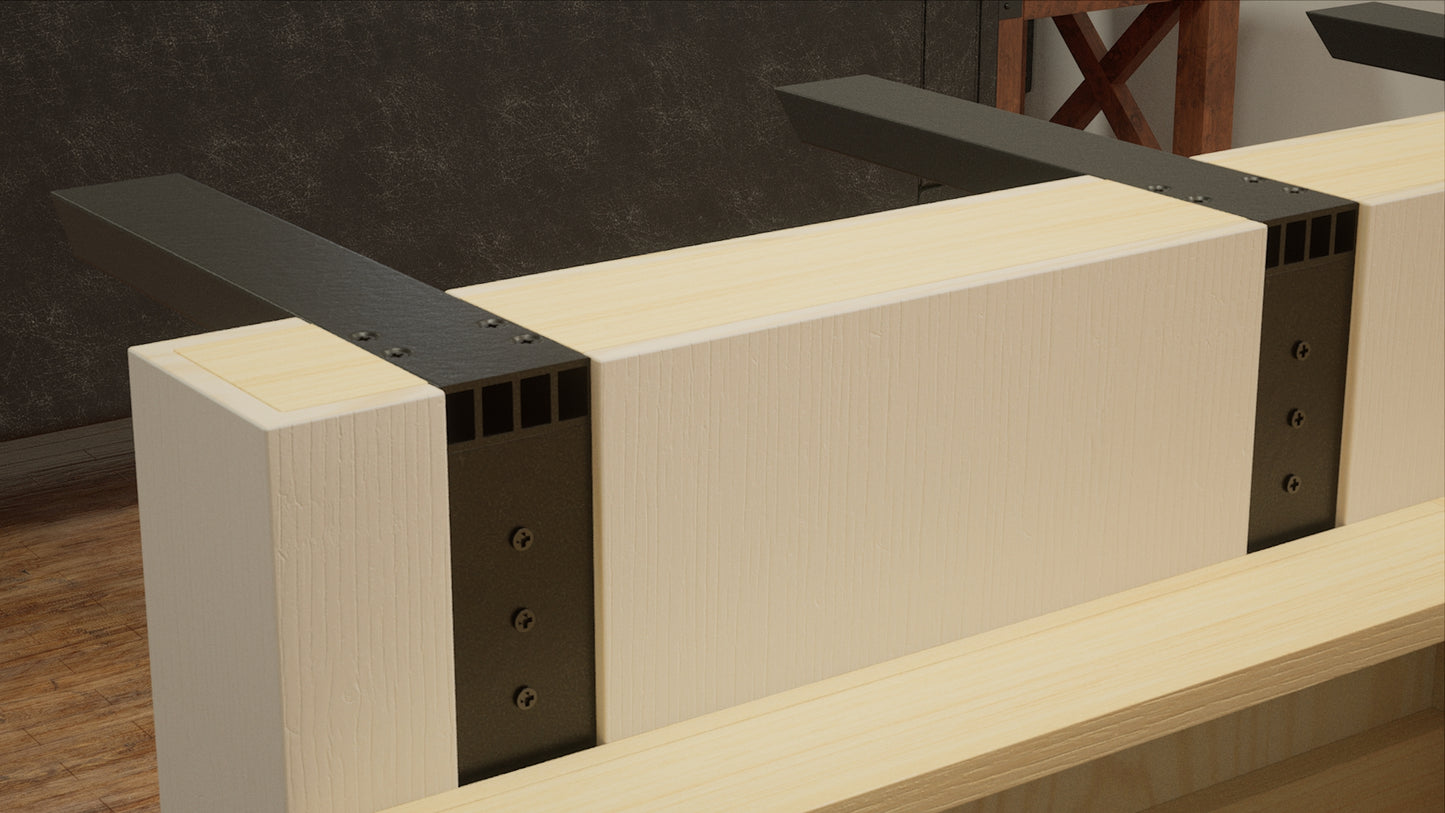

**PLEASE NOTE: The process for installing the Industrial L Countertop Support Bracket is the same as installing the L Countertop Support Bracket, aside from needing to cut a one(1) inch deep notch in your knee/pony wall instead of a half(1/2) inch deep notch. **

** The knee/pony wall MUST be double plated to use this bracket**

**THIS BRACKET ONLY RECOMMENDED FOR USE IN THE SITUATIONS DESCRIBED BY US. NOT RECOMMENDED FOR USE IN ANY APPLICATION OUTSIDE OF THIS**

When determining the size: bracket is sized in length tip to tip horizontally; for example, a 9-inch bracket is 9 inches tip to tip horizontally. Do not include the 6-inch vertical piece when determining the size to order.

Tip on determining length: stay away from outer edge of your countertop 2-4 inches and do not forget to add in the thickness of the knee wall, pony wall, or the 2x6 inside the cabinet. For example, a 24-inch countertop overhang, plus 4-inch knee wall, equals 28 inches, minus 4-inch outer edge, would mean you would order a 24-inch L-Bracket.

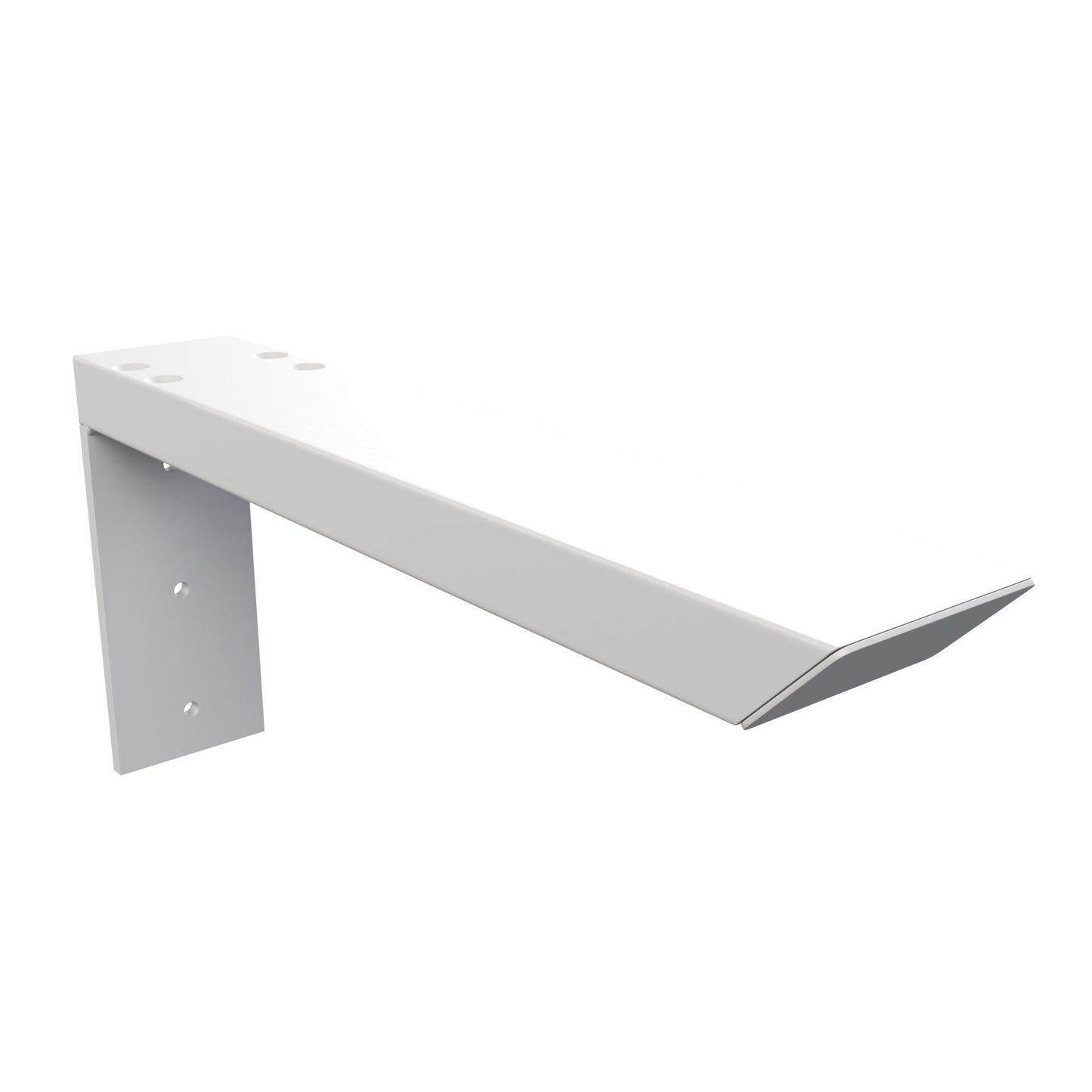

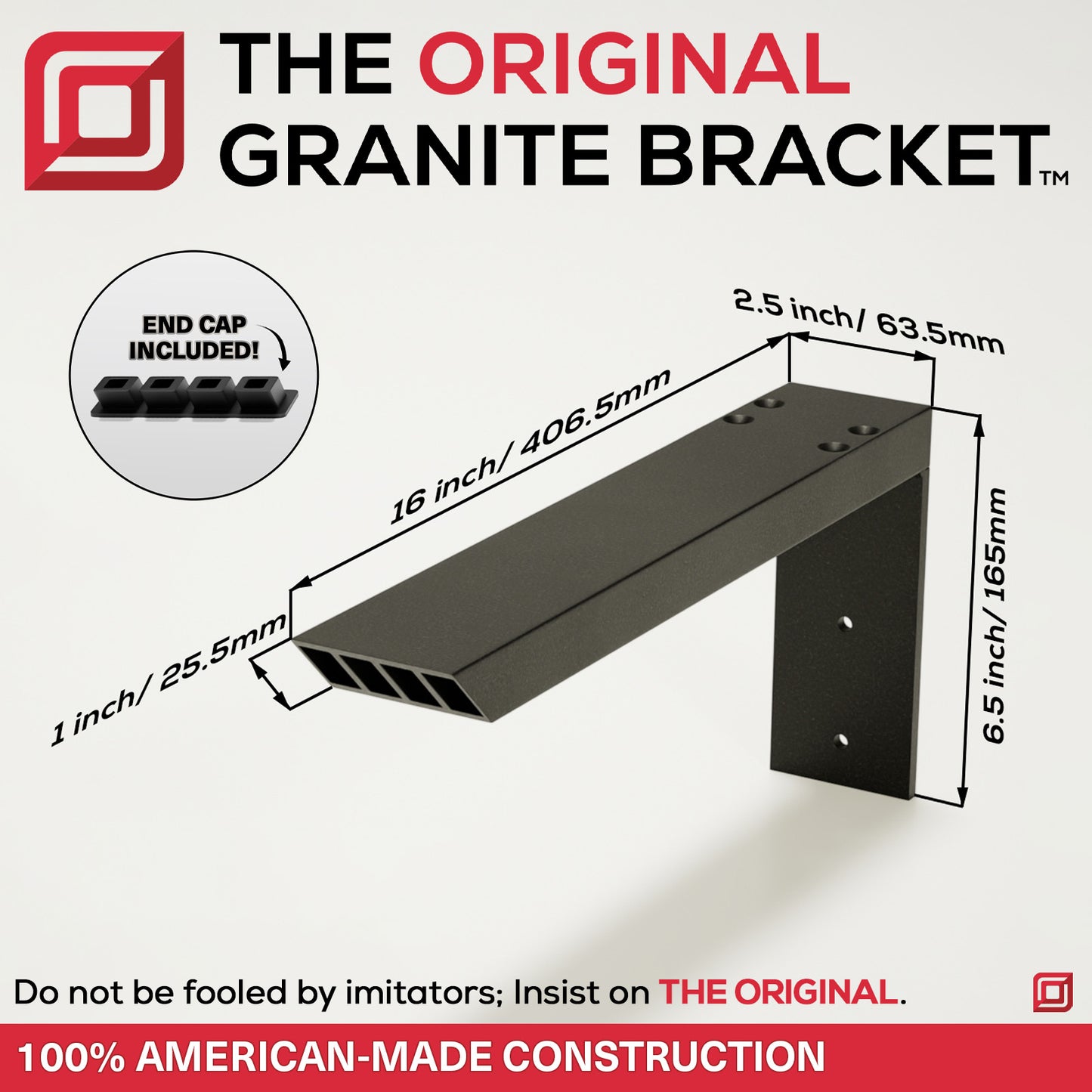

Horizontal Dimensions for the L Bracket:

Length... [choose in listing] [the total horizontal length from tip to tip]

Width.... 2-1/2 inches

Thickness.... 1 inch

Vertical Dimensions:

Length.... 6 inches

Width.... 2-1/2 inches

Thickness.... 1/4 inch

Hole Diameter.... 1/4 inch



Bracket Features:

  • An economical way to protect your stone investment.
  • Use for heavy shelves, desks, or even countertops.
  • Easy to install.

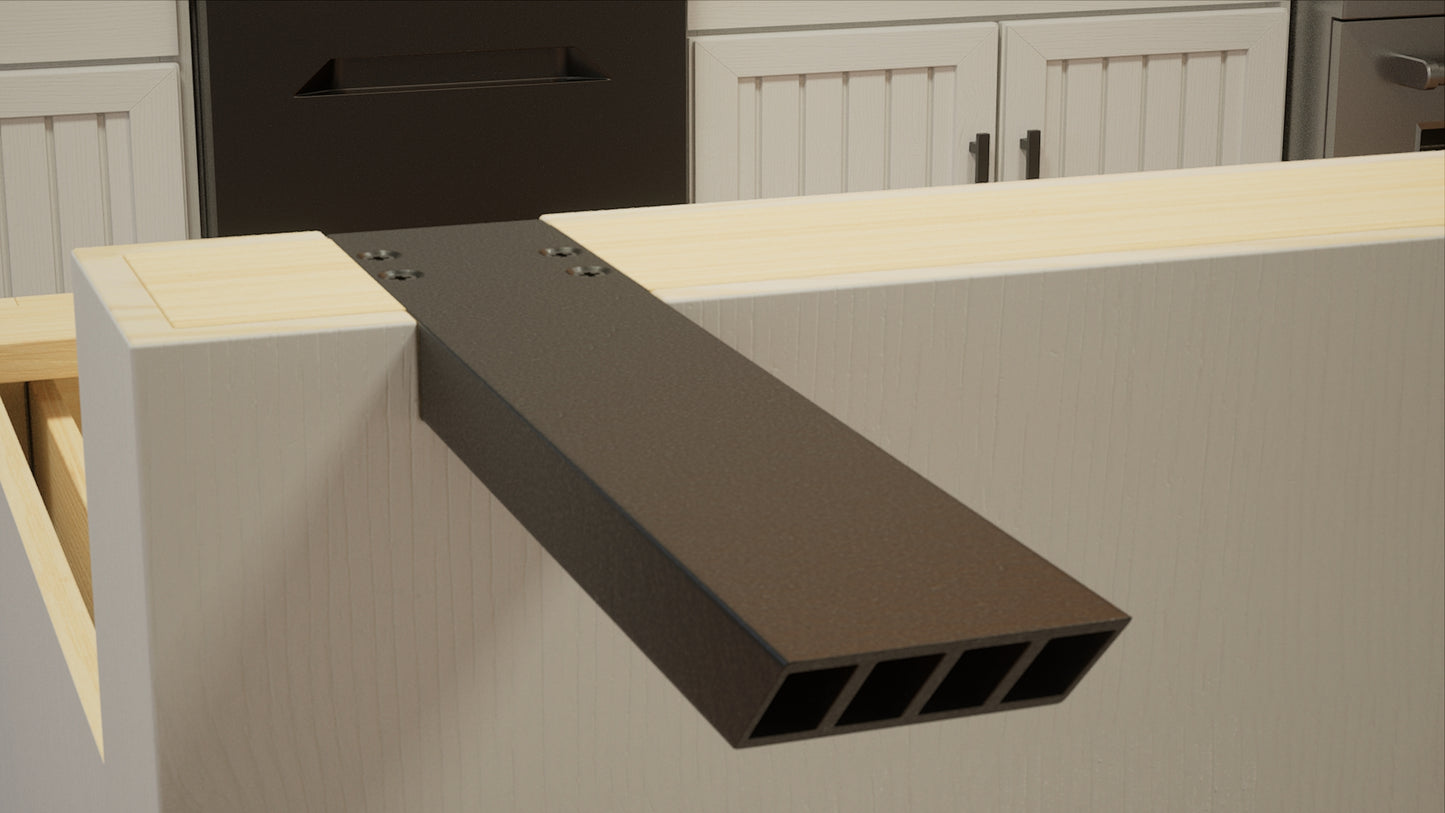

  • Made of 1 inch thick by 2 ½ inches wide Industrial Ribbed Aluminum welded for strength.
  • Bracket end has a beveled edge for safety.
  • Screw holes are on the vertical piece.
  • Black.
  • The bracket may be painted with any anti-rust spray paint.
  • Free Ground Shipping*
  • Made in the USA.
  • The package is (1) bracket.
  • Limited Lifetime Warranty**
  • All of our Aluminum brackets are painted with a double coat of rust inhibitor black paint.

Helpful Information and Downloads:

  • Download Spec/Cut Sheet
  • When will my order ship once the order is placed? [Information can be found here on when your order will ship.]
  • How many brackets do I need? [The Large Shelf Bracket must hit each wood stud. The Installation Guide can be further help.]
  • Most common FAQ

Although we have standard sizes, we can manufacture special order brackets with specifications to your request.

Have questions? Give us a call 888-584-1112

Orders with brackets totaling over 20 brackets please read shipping info for lead time.

*See Full Shipping Info

 **See Terms and Conditions

Regular price $58.95
