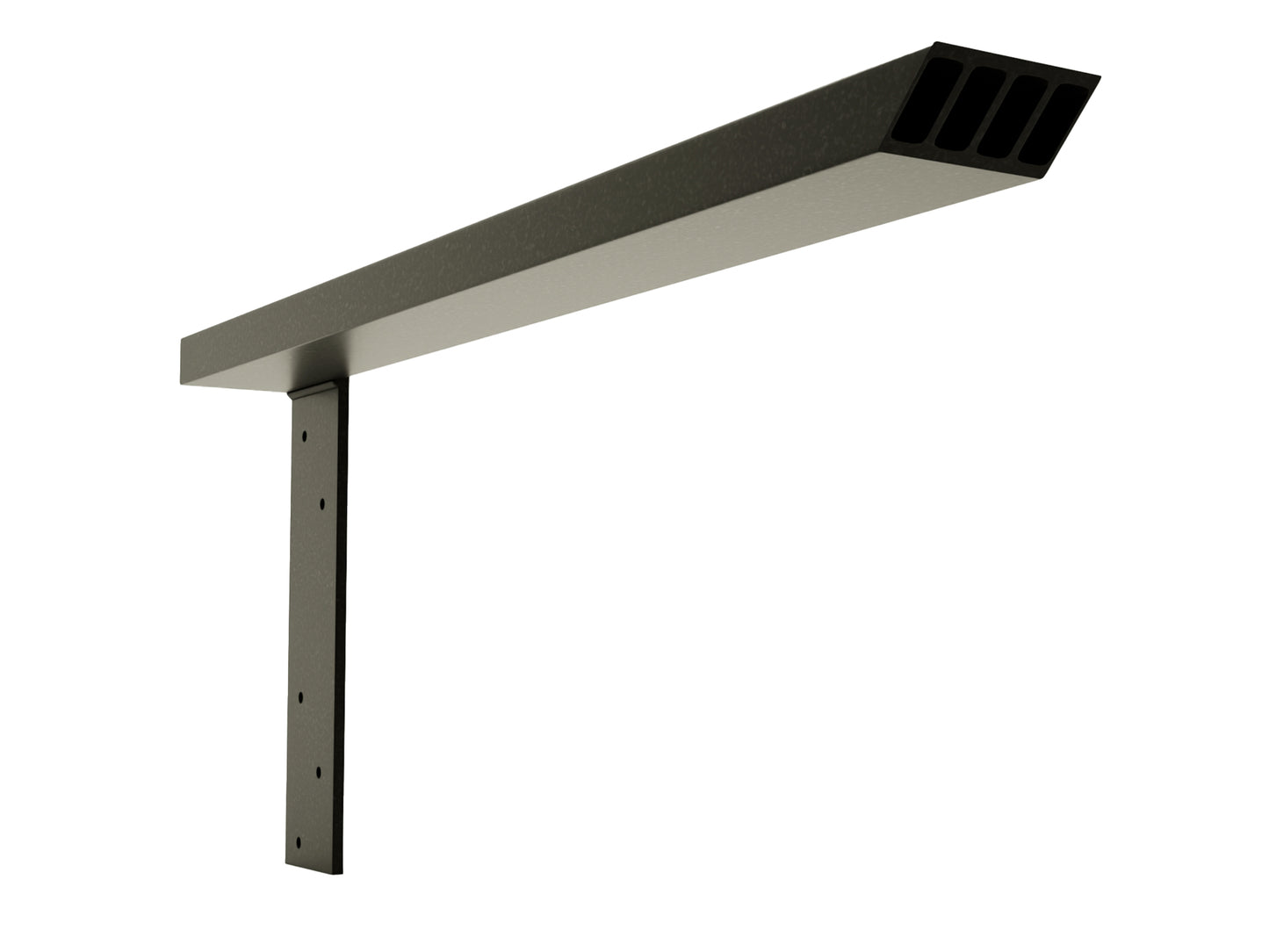

Side Wall Hidden Countertop Support Bracket Right Angle by The Original Granite Bracket

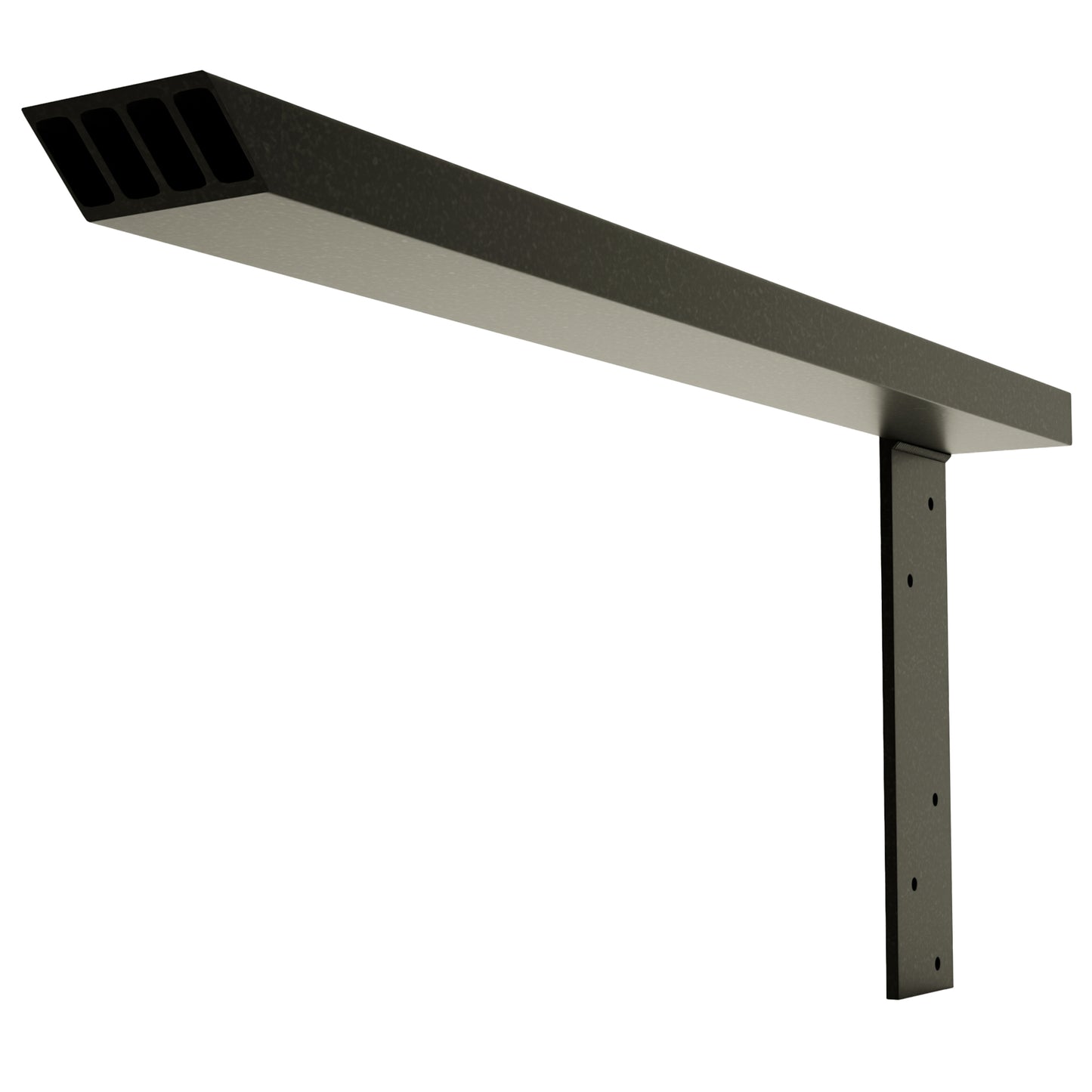

Side Wall Hidden Countertop Support Bracket Left Angle by The Original Granite Bracket
Countertop Support Bracket Side Wall Bracket Notch View by The Original Granite Bracket

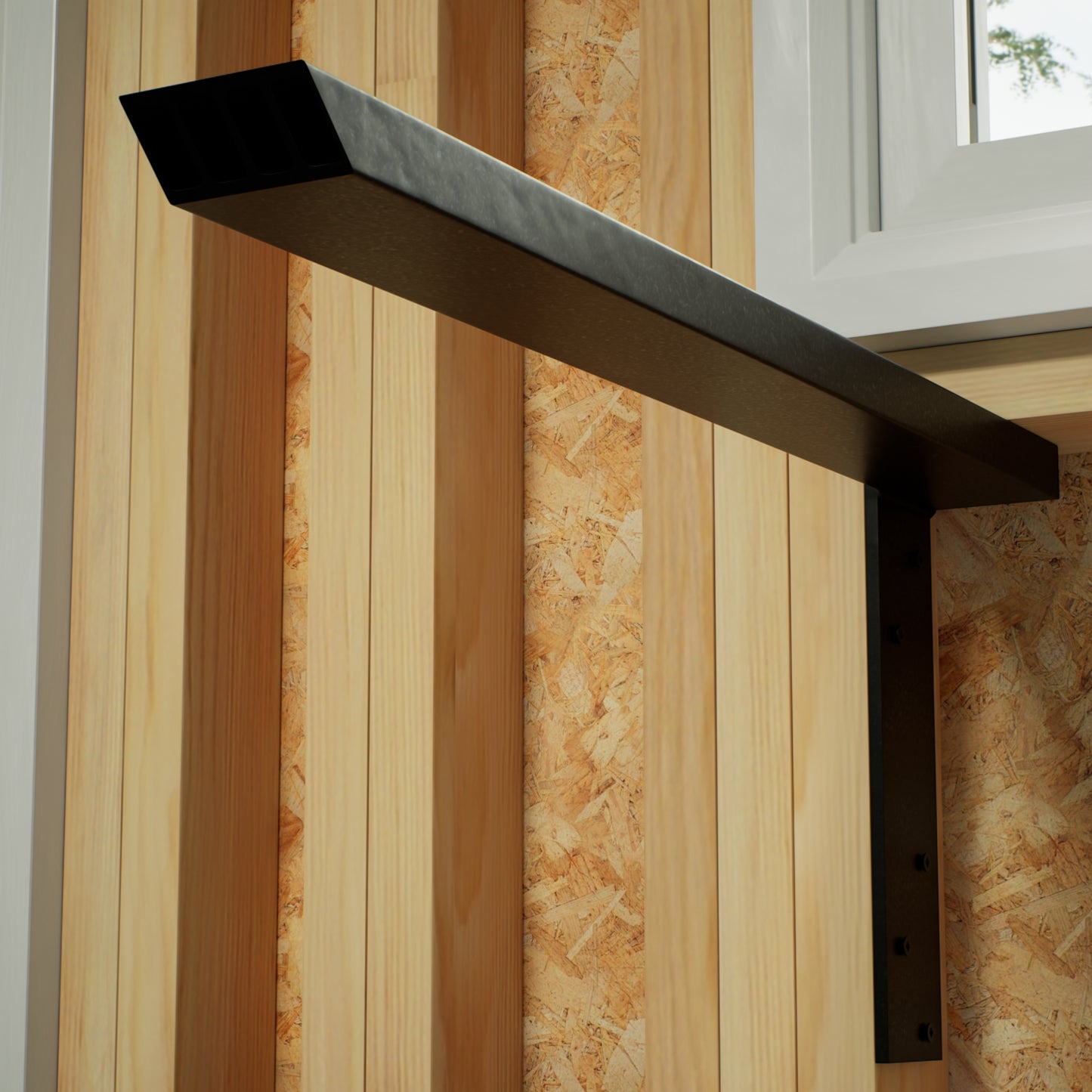

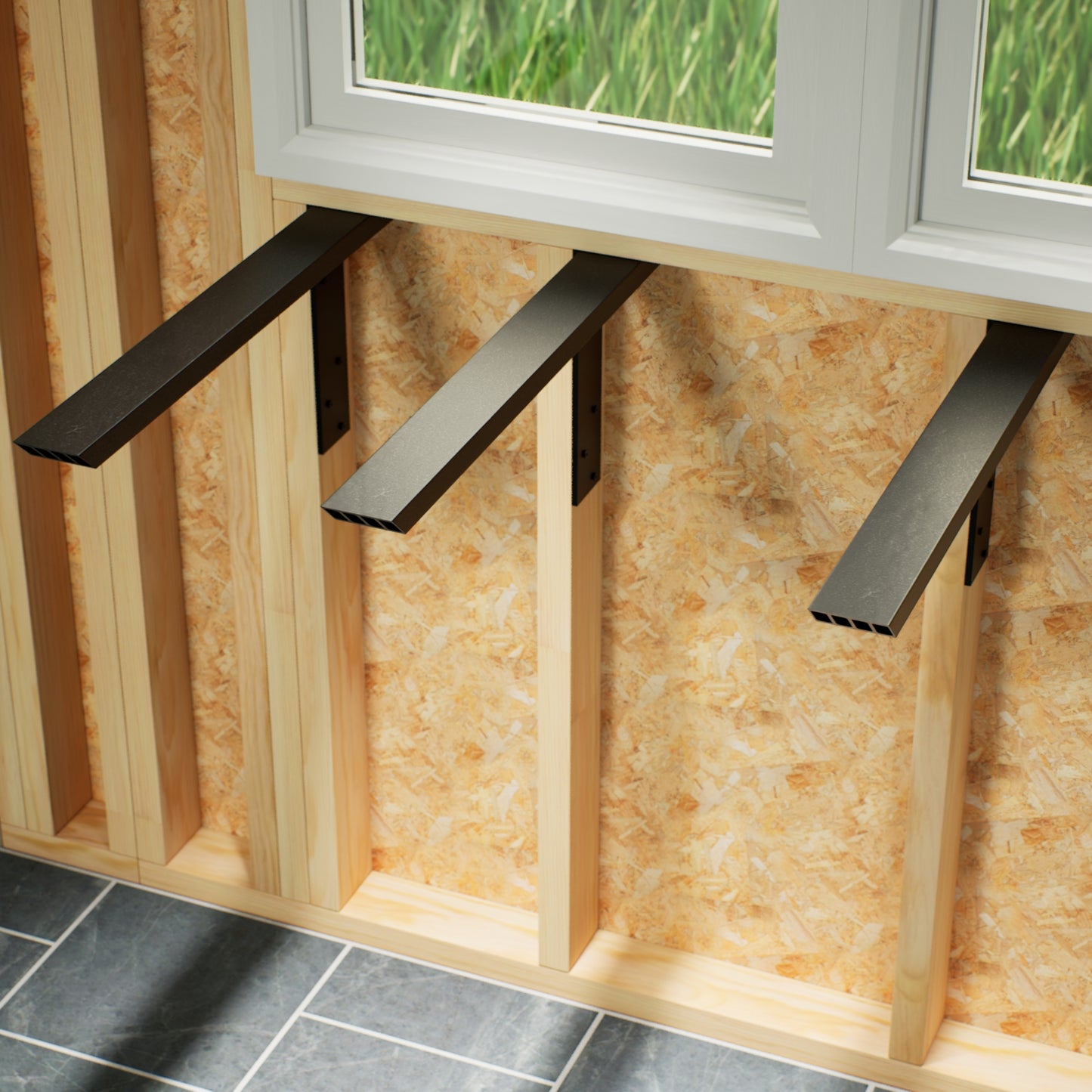

Countertop Support Bracket Side Wall Bracket Installed View by The Original Granite Bracket
Countertop Support Bracket Side Wall Bracket closed drawer View by The Original Granite Bracket
Countertop Support Bracket Side Wall Bracket Front View by The Original Granite Bracket
Countertop Support Bracket Side Wall Bracket Under countertop View by The Original Granite Bracket
On Sale

Side Wall Hidden Countertop Support Bracket

Concealed support brackets for countertops which do not have a knee wall or pony wall to mount to are the perfect solution for our Side Wall Countertop Support Bracket.

This bracket mounts to the inside of the left or right side cabinet wall.

Hidden Countertop Support from The Original Granite Bracket

This bracket has a vertical tang which is welded either to the left or right side of the horizontal piece. The angle placement is determined from the front view (where the 45 degree angle is cut.)



Dimensions for the Side Wall Hidden Bracket:

The horizontal part of the Side Wall Hidden Bracket dimensions is as follows:

Length ……..…. [choose in listing] this is the total length of the bracket from tip to tip including space for vertical tang. Therefore, a 12 inch bracket is 12 inches from tip to tip. [Vertical tang is not used in determining length]

Width …………. 2 ½ inches

Thickness …..…. ½ inch

Dimensions for the Vertical Tang [Anchor part] Placed on left or right side:

Length ………… 6 inches

Width …………. 2 ½ inches

Thickness ……… ¼ inch

Hole Diameter … 1/4 inch


How To Determine How May Brackets You Need:

We recommend spacing your bracket 16-20 inches apart for maximum countertop protection, therefore, if your countertop is longer than the 20 inch recommended spacing you can use the Hidden Island Support Bracket, Knee Wall Bracket, or L Bracket in conjunction with this Side Wall Bracket to protect your countertop investment.

Bracket Features:

  • Virtually invisible, gives your granite countertop the appearance of floating.
  • Non-intrusive. No corbels needed. No knee knocking.
  • Completely open space allowing room for chairs and legs.
  • Economical way to protect your countertop investment.
  • Easy to install
  • Made of ½ inch thick by 2 ½ inch wide American steel
  • Bracket end has beveled edge for safety.
  • Screw holes are placed on vertical piece
  • Textured Powder Coasted for a rust free resistant finish in black
  • Brackets may be painted with any anti-rust spray paint
  • Made in the USA
  • Package is (1) bracket

    Helpful Information and Downloads:

    • Download Spec Sheet
    • When will my order ship once the order is placed? [Information can be found here on when your order will ship.]
    • How many brackets do I need? [We recommend spacing your brackets 16-20 inches apart. The Installation Guide can be further help.
    • Most common FAQ
    • (Revised 6/16/2017)



    Although we have standard sizes we can manufacture special order brackets with specifications to your request.

    Have questions? Give us a call 888-584-1112

    *Orders with brackets totaling over 20 brackets please read shipping info for lead time.





      $ 39.95

      Sale price Regular price $ 34.95
